R+1 Strato Campagnolo Ekar 13 Speed
R+1 Strato Campagnolo Ekar 13 Speed

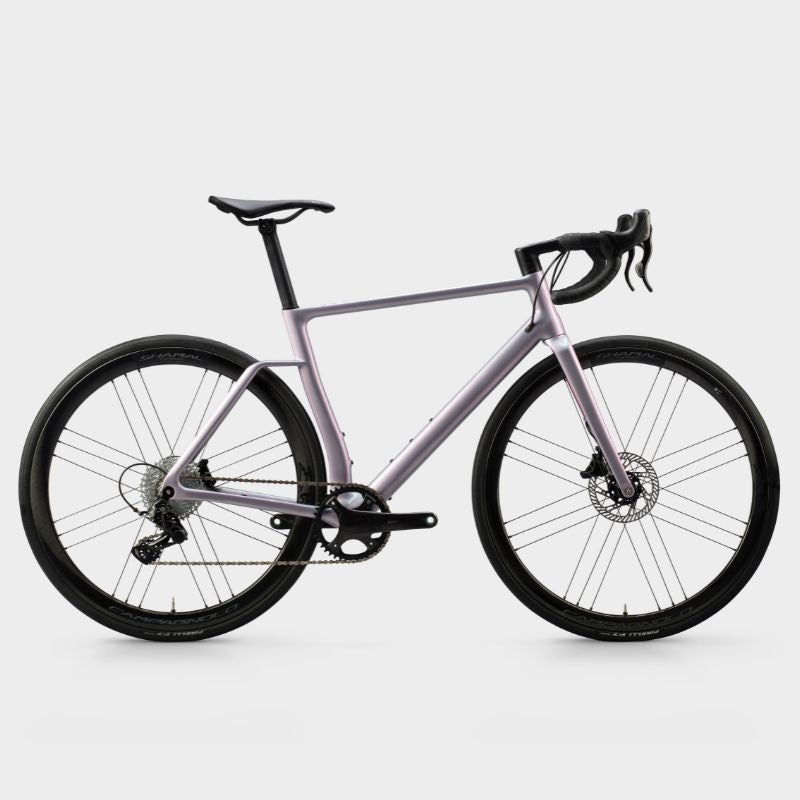

R+1 Strato with Campagnolo Ekar 13 Speed groupset.
The Vielo R+1, a game-changer in the world of road cycling, meticulously engineered to redefine your riding experience. Crafted with precision and passion, the Vielo R+1 equipped with the Campagnolo Ekar 1x groupset combines cutting-edge technology with the simplicity and efficiency of a 1x drivetrain, Plus a little italian passion and feel.
Reviews
Cyclist Magazine - 10/10 "For my money Vielo has created one of the best looking, and one of the best riding road bikes i've ever had the pleasure to test". Read it here: Cyclist magazines perfect Vielo Review
Road.cc 9/10 "Stunning frameset for both performance and looks that embraces the very latest components. Beautifully balanced handling, awesome stiffness, impressive comfort and excellent build quality" Read the review here Road.cc love the Vielo R+1
BikeRadar - 8/10 "A road smoothing 1x machine that will stand out from the crowd and let you enjoy the ride" Read the review here Bike Radar's mega review of the R+1 with Rival
Always bespoke builds
Each bike will be built to order, to your desired specifiation. You pick the parts that fit you from the start. Ensuring the correct bar width, stem length, crank length and chainring size for you.
Frame | Vielo R+1 Strato carbon frame with Semi internal cable routing for all group sets. 1100g Raw frame weight |
Fork | Full Carbon Fibre (semi internal hose routing) |
Colours | Glossy Lilac with Gold Details |
Handlebars | Requires Vielo one piece bar stem combo. Available in various options. Also Compatible with a traditional 2 piece stem and handle bar |
Stems | Requires Vielo one piece bar stem combo. Available in various options. Also Compatible with a traditional 2 piece stem and handle bar |
Headset | Vielo by Token |
Wheels | DT Swiss ER 1600 - Alloy wheels |

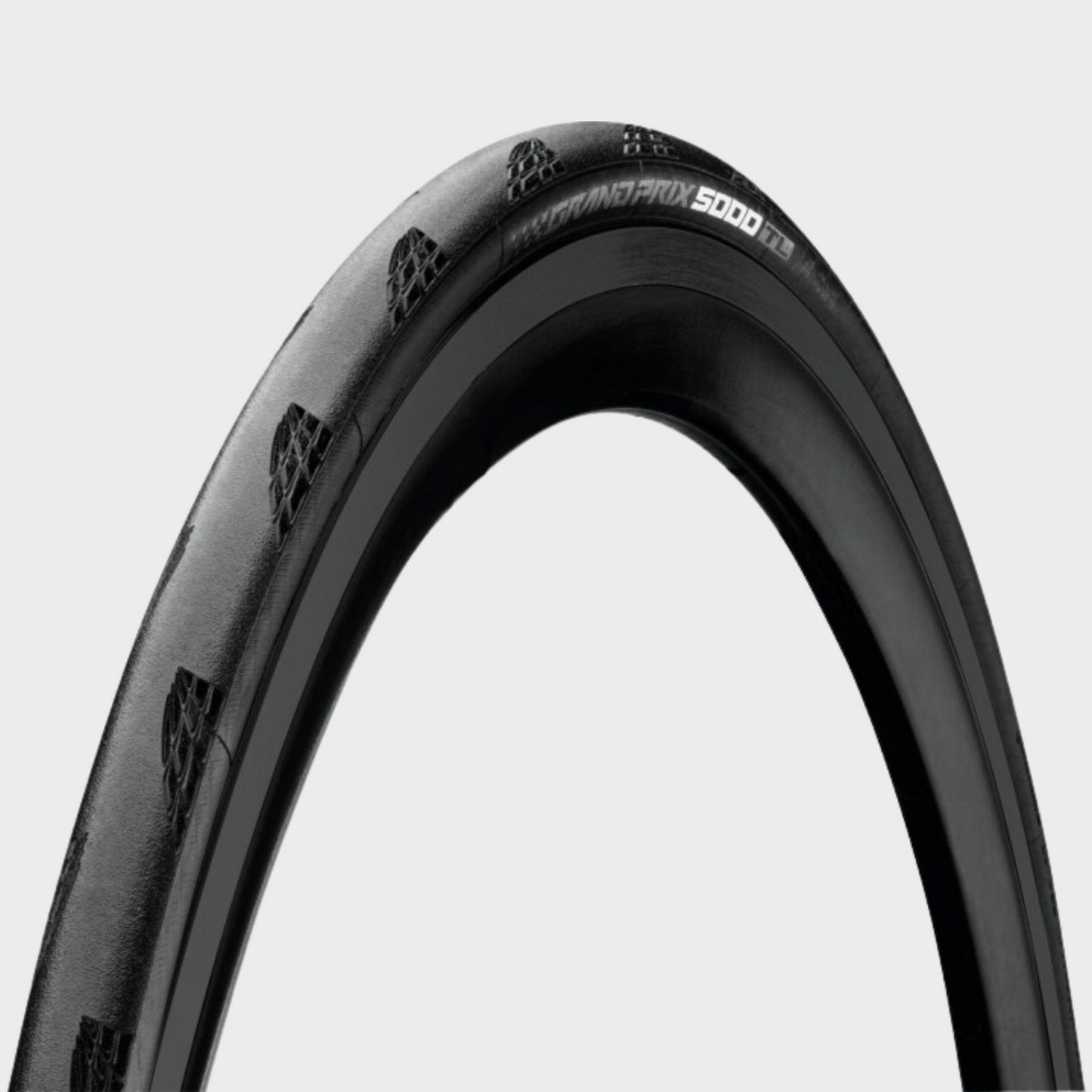

Tyres | Continental GP5000 700x32 supplied Tubeless with Orange Seal |

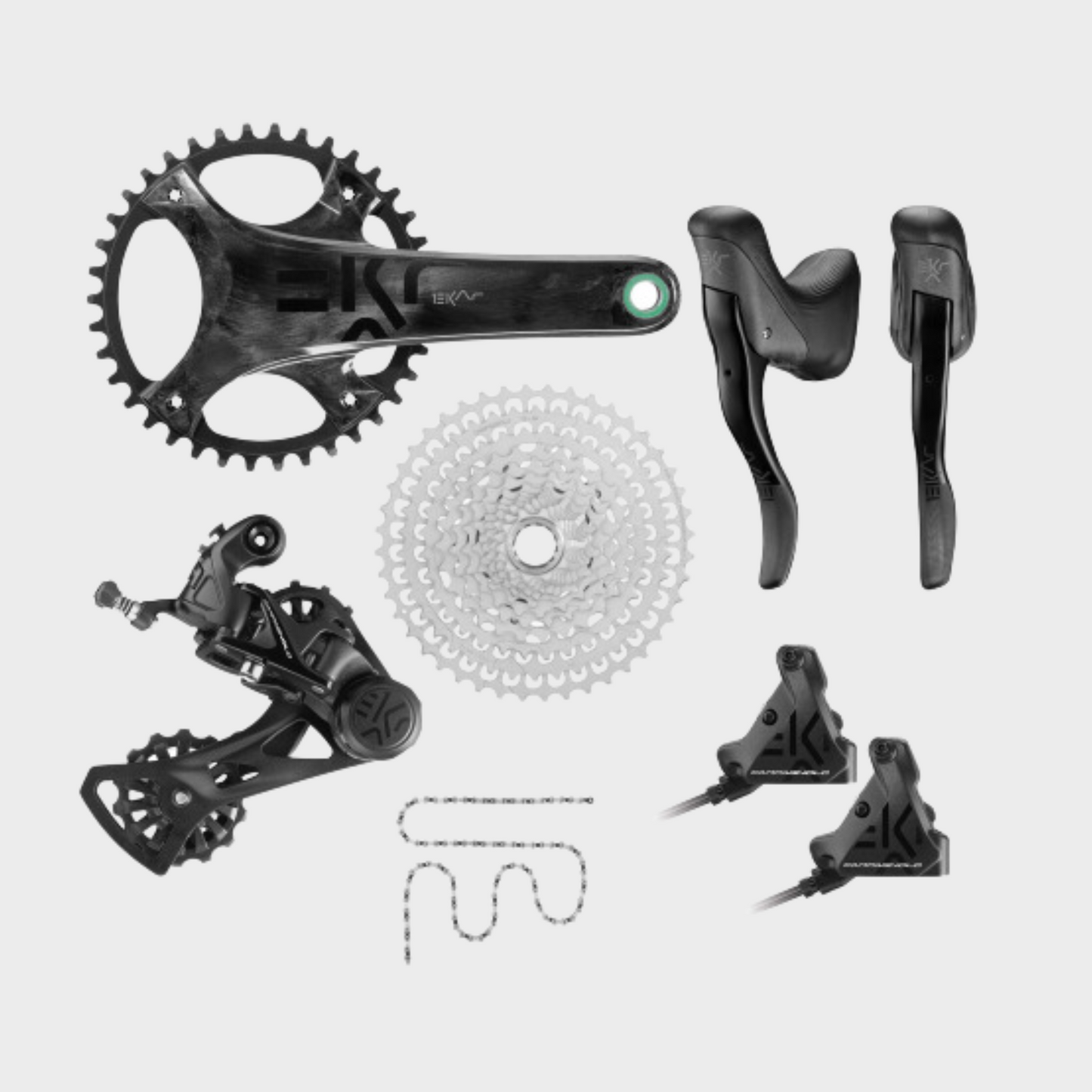

Crankset | Campagnolo Ekar 13 speed carbon cranks with Campagnolo Chainring |
Bottom Bracket | Campagnolo Pro-tech 86.5 x 46mm |
Chain | Campagnolo Ekar 13 speed chain |
Rear Mech | Campagnolo Ekar 13 speed Rear Mech |
Cassette | Campagnolo Ekar 9-36 13 speed Cassette |
Shifters | Campagnolo Ekar 13 speed shifters |
Rotors | Campagnolo 140mm Rear and 160mm Front |
Saddle | Selle Italia SLR Boost Manganese rail |
Seat post | Vielo Carbon Kam tail shape |
Axles | Vielo A2T Fast thread axle with Quick Release handles. 12x100mm / 12x142mm |
Size or dimensions
Size or dimensions
XS | S | M | L | XL | |
---|---|---|---|---|---|
SEAT TUBE (in mm) | 420 | 455 | 490 | 520 | 550 |
TOP TUBE HORIZONTAL (in mm) | 505 | 530 | 555 | 580 | 605 |
HEAD TUBE (in mm) | 100 | 120 | 142.5 | 165 | 187.5 |
CHAIN STAY HORIZONTAL (in mm) | 400 | 400 | 400 | 400 | 400 |
BB DROP (in mm) | 77 | 74.5 | 72 | 72 | 69.5 |
BB HEIGHT (@30 mm tyre) | 270.5 | 273 | 275.5 | 275.5 | 278 |
SEAT TUBE ANGLE (in °) | 75,25 | 74,75 | 74,25 | 73,75 | 73,25 |
FORK RAKE (in mm) | 47 | 47 | 47 | 47 | 47 |
FORK LENGTH (in mm) | 375 | 375 | 375 | 375 | 375 |
HEAD TUBE ANGLE (in °) | 70,25 | 70,75 | 71,25 | 71,50 | 71,75 |
WHEEL BASE (in mm) | 975,6 | 993,9 | 1011,4 | 1030,4 | 1047,4 |
REACH (in mm) | 371,5 | 387,7 | 401,1 | 415,5 | 428 |
STACK (in mm) | 505.2 | 523,7 | 543,9 | 566,4 | 586,4 |
BB TO FORK CENTRE (in mm) | 580,8 | 598,6 | 615,6 | 634,5 | 651,1 |
RIDER HEIGHT (imperial) | 5'3" - 5'6" | 5'5" - 5'9" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
RIDER HEIGHT (metric) | 160 - 167 | 165 - 175 | 173 - 184 | 183 - 193 | 190 - 201 |
Shipping & Returns
Shipping & Returns
UK Deliveries
All UK deliveries are sent by express courier, usually on a next working day delivery. In stock parts, accessories and clothing orders placed before 1pm we’ll aim to dispatch the same day. All deliveries of bikes are made to order, so please allow up to 3 working days for build time before dispatch.
Built Bikes
Built bikes are shipped in large box, 95% assembled. When you receive
the box all you’ll need to do is insert the wheels, attach your pedals
and set your saddle height. If you’ve provided your bike fit data to us
we will have marked your saddle height on the seat post for you. Torque
settings, manuals and first steps videos are all available in our Vielo
owners area. All deliveries will be dispatched with tracking numbers
emailed to you.
Bikes are sent via Next Working day Courier. Some deliveries in areas
such as the highlands or islands will require additional time for
deliveries. 99.9% of our deliveries arrive on time, however sometimes
delays in transit happen. If your order is time critical please let us
know in advance and we’ll do all we can.
International Pricing
International Pricing
At Vielo.cc we display all our prices in GBP £ including UK VAT at 20%.
International prices vary for each country due to import duties, tariffs, currency differences and local taxes. For pricing in your local currency,
including having the bike built to your desired specification, please contact your local dealer or us directly at info@vielosports.com
Read more here
Warranty
Warranty
Vielo Frames come with a 5 Year warranty when registered at Vielo.cc
We also offer a Crash replacement policy to customers to help them get back on the road or gravel in the event of an accident
Cycle to Work scheme
Cycle to Work scheme
At Vielo we accept the following forms of Cycle to Work Schemes;
Cycle Scheme | |
Green Commute Initiative | |
Cycle Solutions | |
gogeta | |
Vivup | |
Bike2work Scheme | |
Enjoy Benefits |
If you would like to order your Vielo using one of these schemes please contact us directly so we can process your vouchers. You can email us at info@vielosports.com
Cycle to Work Scheme order process
1 – Contact us (phone or email) to request a quote and check stock availability.
2 – We’ll email you a quote with all the details about your bike.
3 – We normally ask for a £100 refundable deposit to hold the frame and parts for your bike build.
4 - You request a Cycle to Work voucher from your employer for the value of the bike.
5 – When your voucher arrives, you send it to us. We can then build your bike, claim the voucher and refund your £100 deposit.
You can email us at info@vielosports.com to start the process at any time.
All Pictures shown are for illustration purpose only. Actual product specification may vary due to product enhancement.
