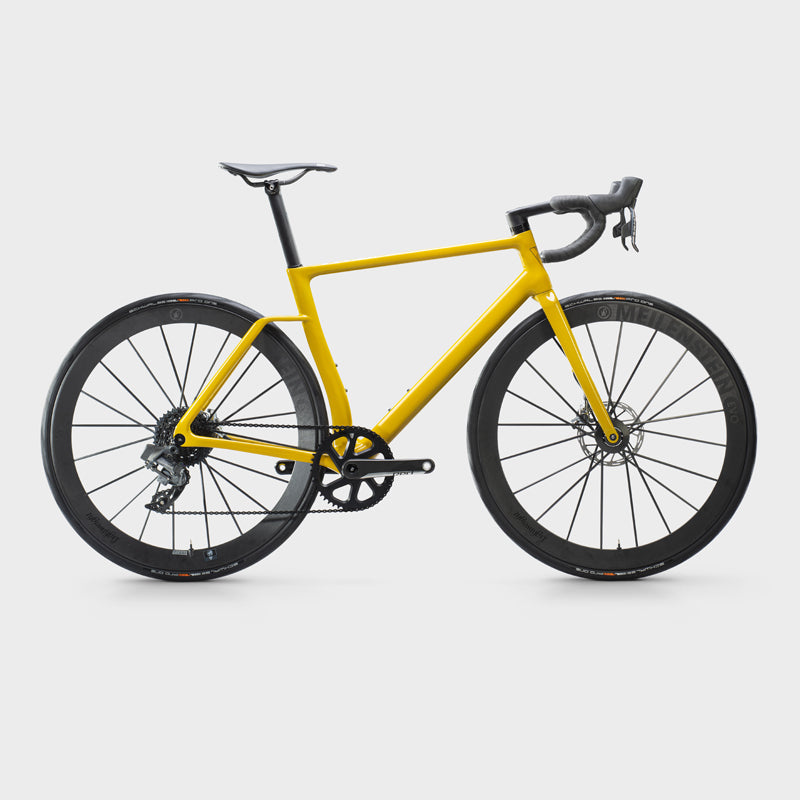

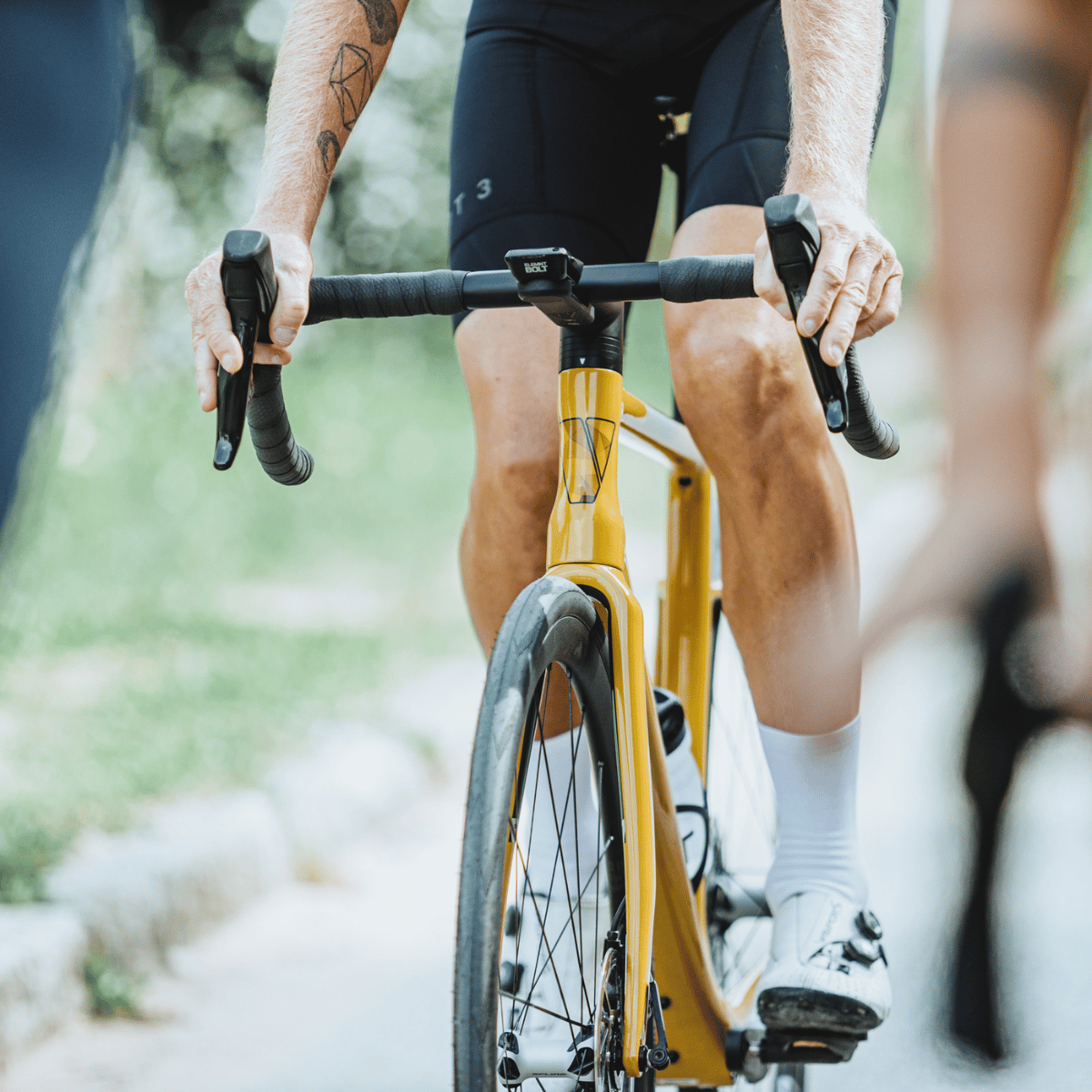

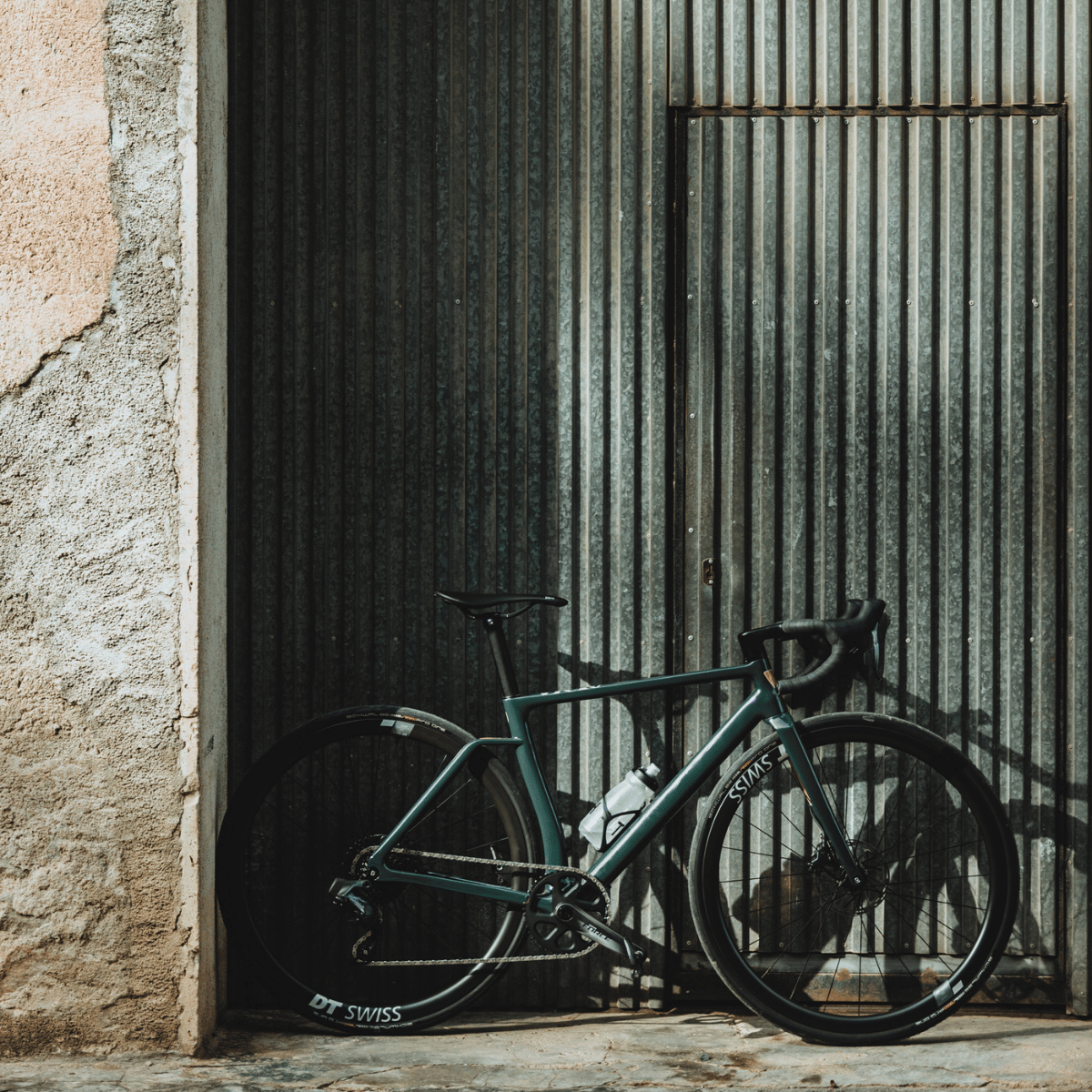

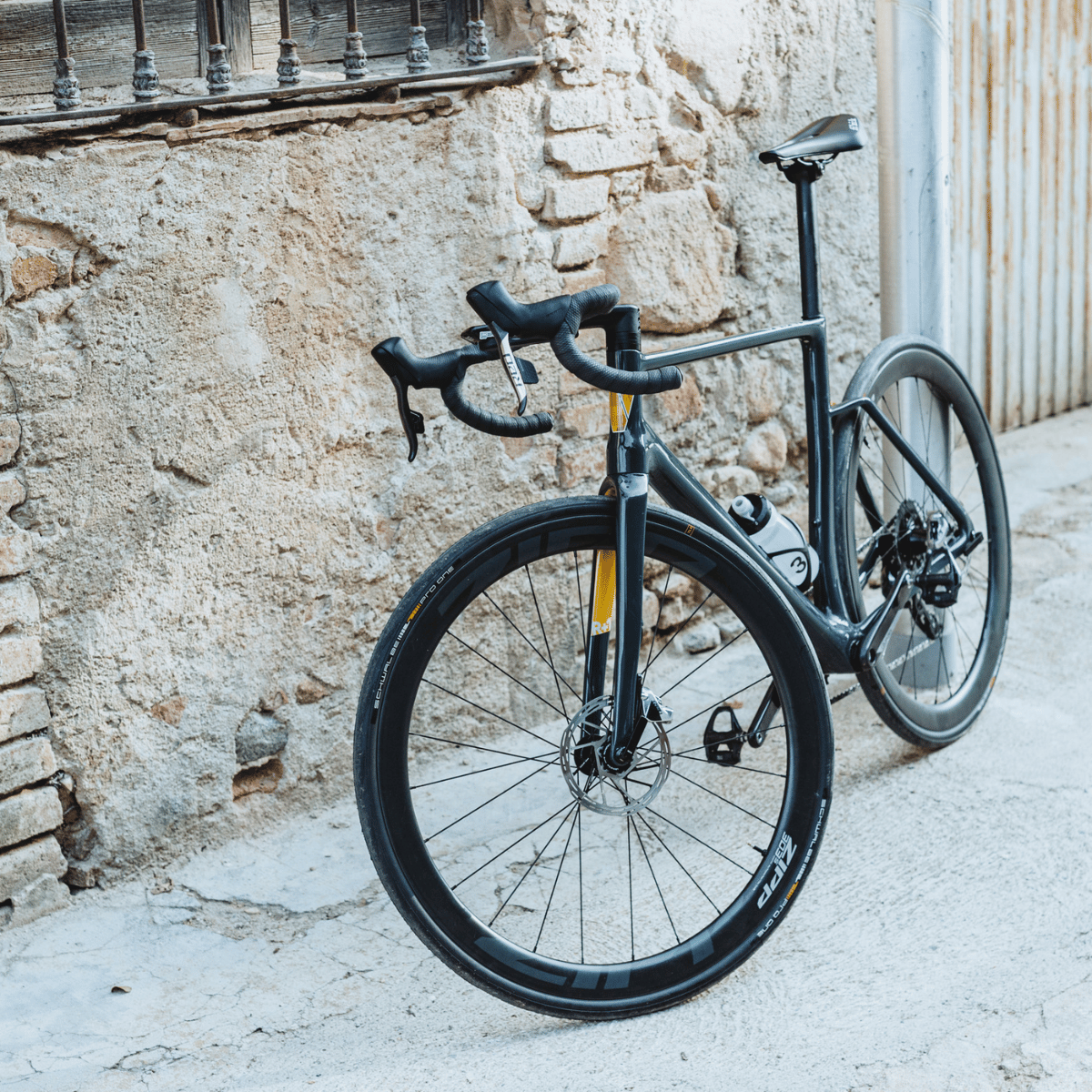

Vielo R+1 Alto 1x Road bike SRAM Red e-Tap AXS 12 Speed
1x is no fad. It's the logical next step for road bikes. Lose the second chainring and you gain a beautiful symmetry. Nothing is offset, with a perfectly balanced downtube, bottom bracket and chainstay contributing to 30% greater lateral stiffness.

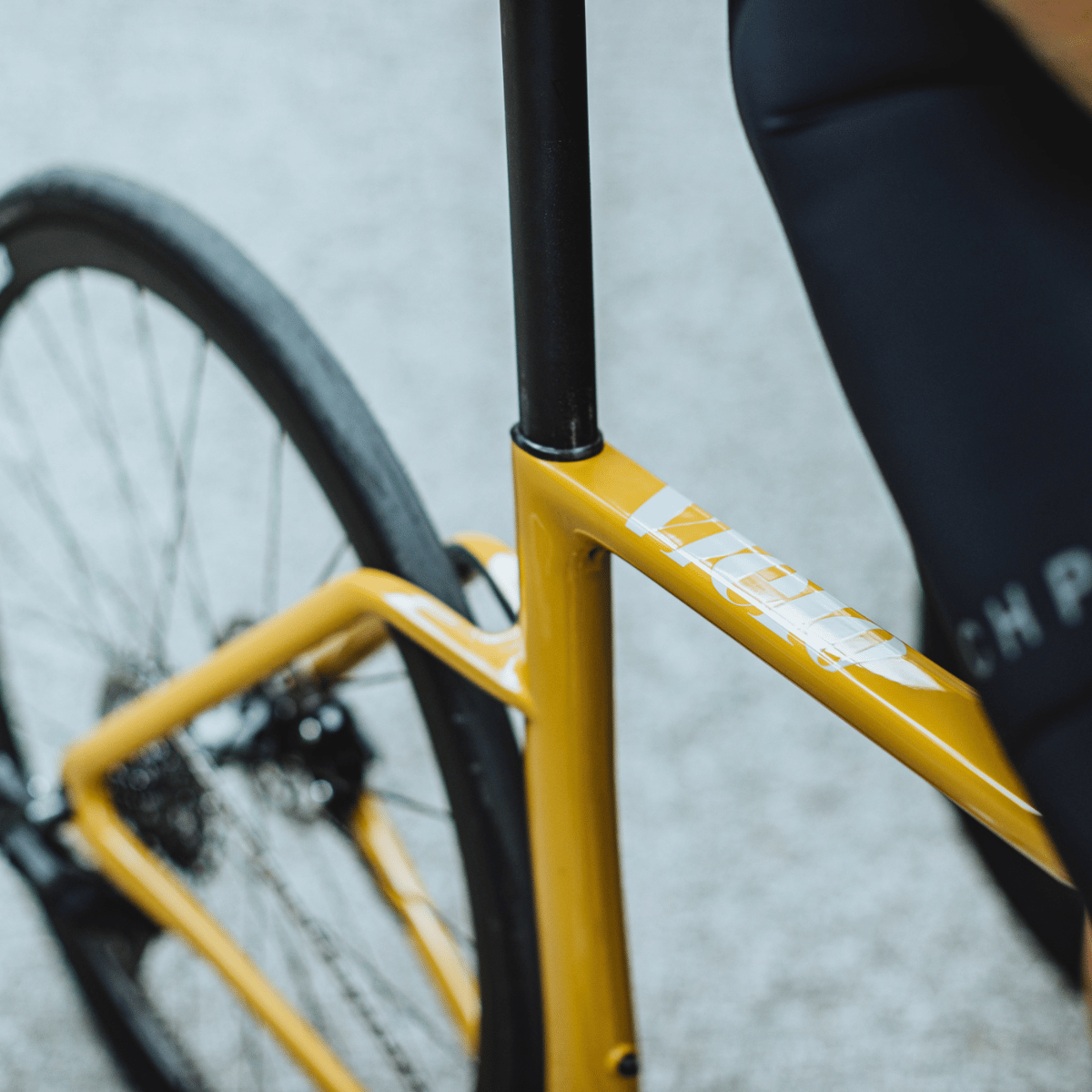

By replacing the double chain ring with a single, the chain stays complement the symmetrical design. And deliver far more bang for your buck. The unique seat stays profile is more aero and boosts rider comfort for lung busting climbs as well as handling confidence for those long, head down descents.
Optimum performance? Look no further than the 30-32mm tyres accommodated by the R+1. Proven to offer less rolling resistance and rider fatigue and, when combined with the unique features of the R+1 frame, offering greater aero advantages. The perfect pairing.
The R+1 Alto is our lightest frame. It's exclusively designed for Wireless groupsets, with only the brake hoses internally routed. Paired with our Combo bar it creates a sleek, uniform cockpit set up.
Reviews
Cyclist Magazine - 10/10 "For my money Vielo has created one of the best looking, and one of the best riding road bikes i've ever had the pleasure to test". Read it here: Cyclist magazines perfect Vielo Review
Road.cc 9/10 "Stunning frameset for both performance and looks that embraces the very latest components. Beautifully balanced handling, awesome stiffness, impressive comfort and excellent build quality" Read the review here Road.cc love the Vielo R+1
BikeRadar - 8/10 "A road smoothing 1x machine that will stand out from the crowd and let you enjoy the ride" Read the review here Bike Radar's mega review of the R+1 with Rival
Always bespoke builds
Each bike will be built to order, to your desired specifiation. You pick the parts that fit you from the start. Ensuring the correct bar width, stem length, crank length and chainring size for you.
| Frame | Vielo R+1 Alto carbon frame with full internal cable routing (Exclusively designed for SRAM wireless Groupsets) 880g Raw weight |
| Fork | Vielo R+1 Alto carbon Fork with full internal cable routing |

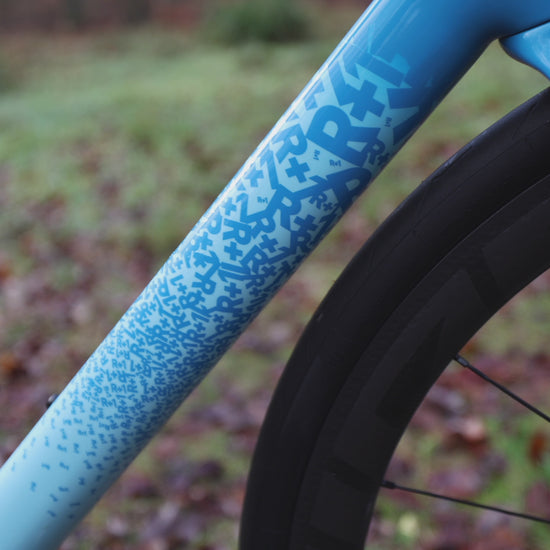

| Colours | Mustard Yellow or Anthracite or Cyan Blue |
| Handlebars | Requires Vielo one piece bar stem combo. Available in various options |
| Stems | Requires Vielo one piece bar stem combo. Available in various options |
| Headset | Vielo by Token |
| Wheels | Zipp 303 Firecrest |

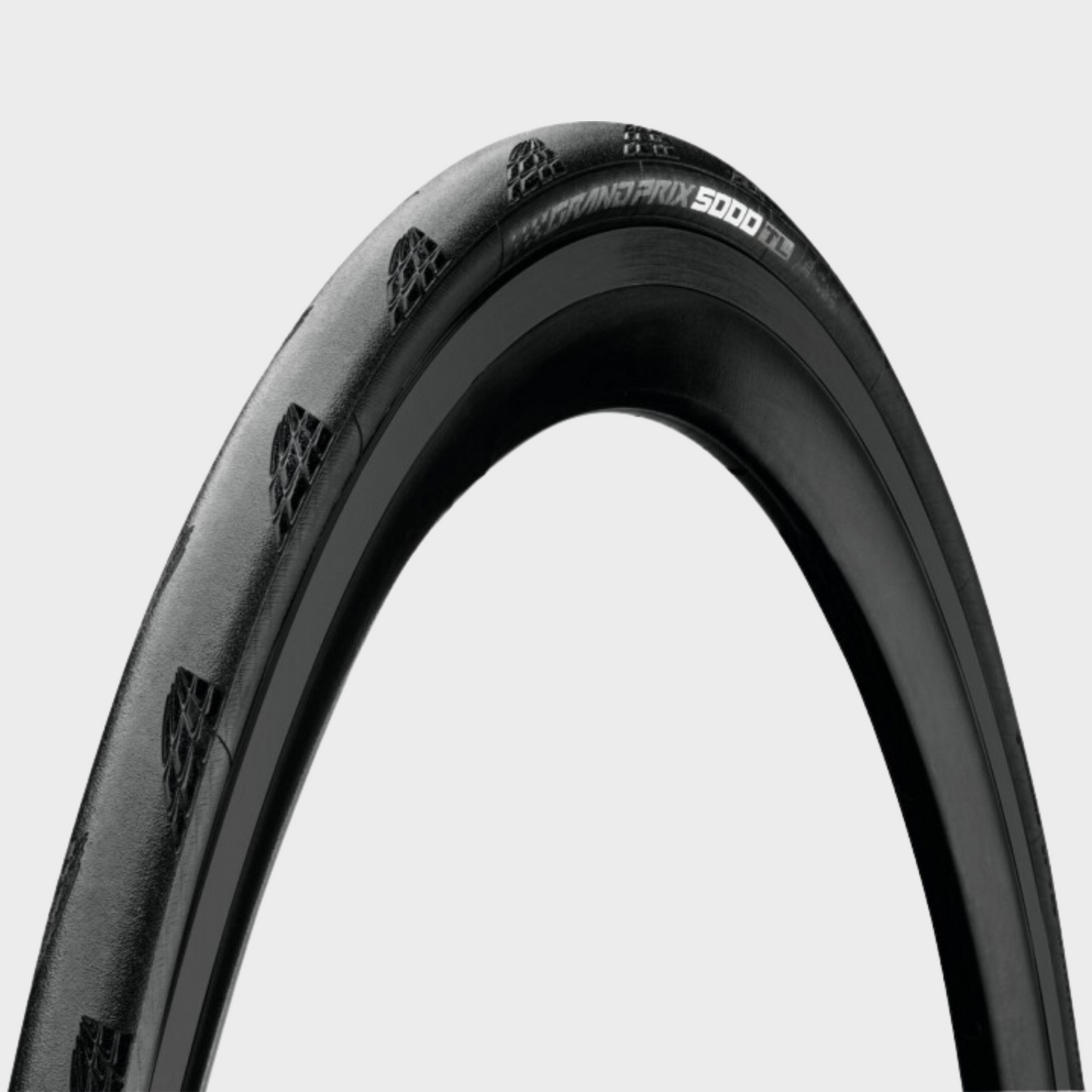

| Tyres | Continental GP5000 700x32 supplied Tubeless with Orange Seal |

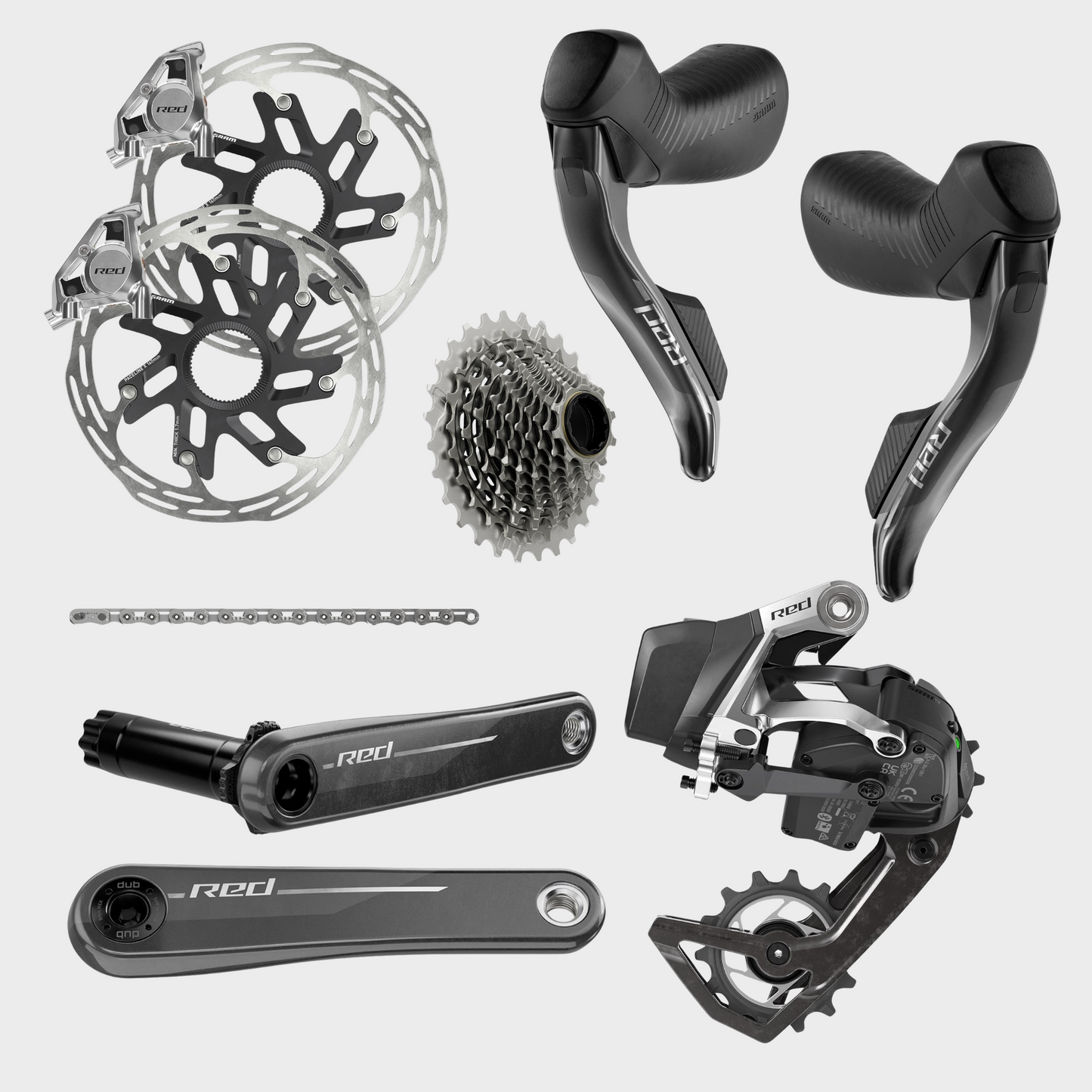

| Crankset | SRAM Red E1 crank arm with Vielo CNC machined chain ring |
| Bottom Bracket | Token Ninja BB386 Evo Pressfit |
| Chain | SRAM Red E1 flat top 12 speed |
| Rear Mech | SRAM Red E1 e-tap wide for 10-36 |
| Cassette | SRAM Red E1 XG-1290 10-36 |
| Shifters | SRAM Red AXS E1 e-tap shifters / levers |
| Rotors | SRAM Centre line X 140mm rear, 160mm front |
| Saddle | Selle Italia SLR Boost Super flow Carbon rail |
| Seat post | Vielo Carbon Kam tail shape |
| Axles | Mustard or Anthracite - Vielo A2T Fast thread axle with Quick Release handles. 12x100mm / 12x142mm |
| Cyan Blue - Handle free Thru bolt axles with 1.5mm tread. 12x100mm and 12x142mm |
Size or dimensions
Size or dimensions
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| SEAT TUBE (in mm) | 420 | 455 | 490 | 520 | 550 |
| TOP TUBE HORIZONTAL (in mm) | 505 | 530 | 555 | 580 | 605 |
| HEAD TUBE (in mm) | 100 | 120 | 142.5 | 165 | 187.5 |
| CHAIN STAY HORIZONTAL (in mm) | 400 | 400 | 400 | 400 | 400 |
| BB DROP (in mm) | 77 | 74.5 | 72 | 72 | 69.5 |
| BB HEIGHT (@30 mm tyre) | 270.5 | 273 | 275.5 | 275.5 | 278 |
| SEAT TUBE ANGLE (in °) | 75,25 | 74,75 | 74,25 | 73,75 | 73,25 |
| FORK RAKE (in mm) | 47 | 47 | 47 | 47 | 47 |
| FORK LENGTH (in mm) | 375 | 375 | 375 | 375 | 375 |
| HEAD TUBE ANGLE (in °) | 70,25 | 70,75 | 71,25 | 71,50 | 71,75 |
| WHEEL BASE (in mm) | 975,6 | 993,9 | 1011,4 | 1030,4 | 1047,4 |
| REACH (in mm) | 371,5 | 387,7 | 401,1 | 415,5 | 428 |
| STACK (in mm) | 505.2 | 523,7 | 543,9 | 566,4 | 586,4 |
| BB TO FORK CENTRE (in mm) | 580,8 | 598,6 | 615,6 | 634,5 | 651,1 |
| RIDER HEIGHT (imperial) | 5'3" - 5'6" | 5'5" - 5'9" | 5'8" - 6'1" | 6' - 6'4" | 6'3" - 6'7" |
| RIDER HEIGHT (metric) | 160 - 167 | 165 - 175 | 173 - 184 | 183 - 193 | 190 - 201 |
